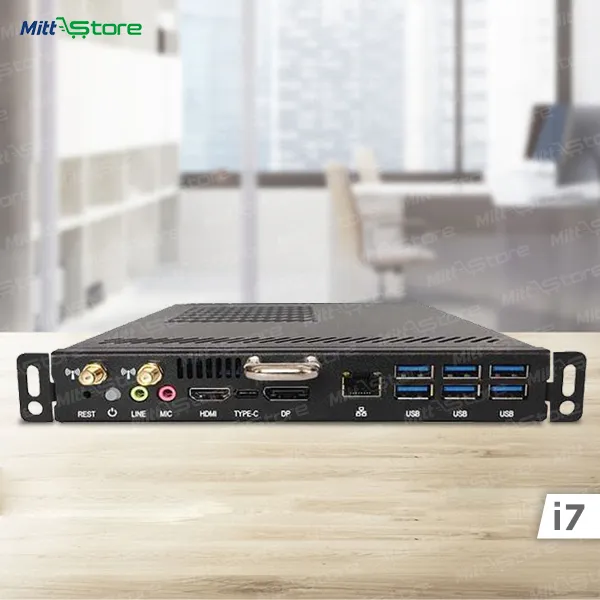

Intel Core i7 OPS Module – Seamless Integration and Powerful Computing for Digital Signage & Interactive Panels
₹46549.00
₹70000.00
Save ₹23451.00
SKU: SS2506O01
Upgrade your interactive flat panel or digital signage solution with this OPS (Open Pluggable Specification) module, featuring an Intel® Core™ i7 processor for seamless performance and professional-grade computing.
Designed for easy integration, this plug-and-play module slots directly into compatible displays, eliminating the need for external PCs or messy cables. Whether in education, business, or public spaces, the OPS i5 module delivers the power and flexibility you need.
More Description...
- Intel® Core™ i7 Processor – Fast, efficient, and reliable performance for multitasking and smooth operation.

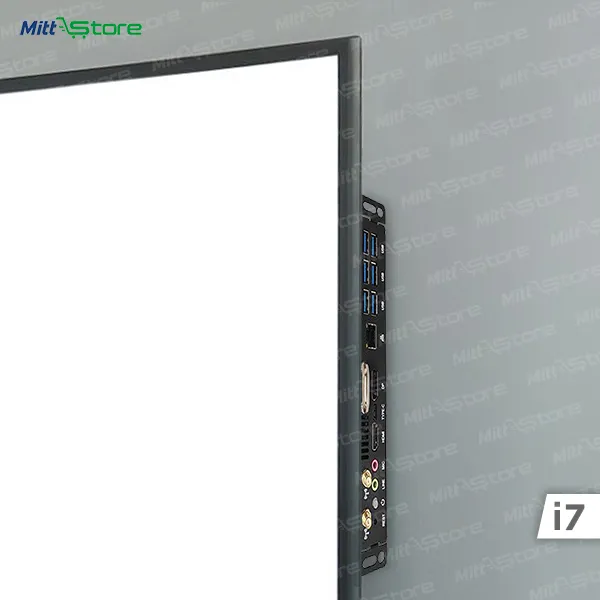

- Plug-and-Play Design – Easily install into OPS-compatible displays without extra wiring or setup.
- Compact and Space-Saving – Eliminates the need for an external computer, keeping your setup clean and professional.
- 4K Video Output Support – Perfect for high-definition visuals, presentations, and digital content.
- Multiple Connectivity Options – Includes HDMI, USB, LAN, and audio ports for versatile use.
- Compatible with Windows and Linux OS – Flexible for your preferred software environment.
| Standard Specification | CPU + B7:D21B7:D19 | Intel Core i7 |
| Memory | 1 X SO-DIMM DDR4 2666MHz | |
| SSD | 1 X SSD Port | |
| Graphics | Intel® UHD Graphics (Upper then 8th Gen) | |
| Output | HDMI / DP supports synchronous and asynchronous dual. | |
| Net | LAN: Intel 8111h 10M / 100M / 1000M Ethernet WIFI: 1 X M.2 2230 for Wi-Fi + BT |
|
| I/O Port | Front Interface | 1 X HDMI 1.4 out 3 X USB3.0 1 X USB2.0 1 X RJ45 1 X Power 1 X Reset 1 X Line out 1 X Mic in |
| Back interference | 1 X JAE 80PIN : HDMI out (4K60Hz) | |
| Power Parameters | Power input | 12V/19V 4.7A |
| Host size (mm) | Bare metal: 195 X 180 X 30 Packing box size: 282 X 257 X 79 |
|
| Size Parameters | Weight (kg) | Net weight=1.2 Kg Gross weight=1.4 Kg |
| Operating temperature | 0°C~ 45°C | |
| Temperature and Humidity | Storage temperature | -40°C~ 80°C |
| Working humidity | 10% - 95% @40°C non-condensing | |
| System | Supported operating systems | Windows 10 (optional) |
| Gen. | 10th, 11th | |
| DDR4 Memory / RAM | 8/16/32GB | |
| HDD / SSD | 128/256/512GB | |
- Store the module in an anti-static bag when not in use.
- Avoid blocking ventilation slots to prevent overheating.
- Update firmware and drivers regularly for optimal performance.
- Handle the module gently; avoid dropping or applying excessive force.
- Always power off the host device before inserting or removing the OPS module.
- Keep the module and its connectors clean and free from dust.
- Use compressed air to clean ports if necessary; avoid liquids near the module.
- Avoid exposure to extreme temperatures or humidity.
Stock Adequate！Ready to ship
