Robotics & Coding Kit for Age 8+: Learn Block-Based Programming, IoT & AI with Robots-Level 4
Rs. 6325.00
Note: The wheeled base is not included with the digital panel. To buy both, contact our customer care team
An Interactive Flat Panel (IFP) is a large display screen that combines the capabilities of a traditional whiteboard with advanced touch-screen technology, allowing for interactive collaboration and digital content sharing. IFPs are widely used in education, corporate meetings, and training environments.
| Specification | DTF 65G without AI |
| Number of Pieces | Single Piece |
| Overall Size | 1485.7*903*88.8mm |
| Packing Size | 1635*1050*220mm |
| Display Area | 1429.8*804.9mm |
| Physical Resolution | (4K) 3840*2160 |
| Net/Gross Weight | 45/50kgs |
| Power Consumption | 210W |
| Voltage | 100-240V~ 50/60Hz |
| Wall Amount Thickness | M8*25mm |
| Chipset | V100 |
| CPU | Octa-core |
| GPU | Mali-G52 MP2 (2EE) |
| RAM | 8GB |
| ROM | 128GB |
| Android Version | Android 14.0 |
| Touch Point | 20/40 Point Touch |
| Writing Protection | Physically Toughened Mohs Class 7 Explosion-Proof Glass |
| Touch Surface Material | Zero Bonding 4.0mm, Anti-Glare full toughened glass |
| Operational Environment Life Time | >60,000 hours |
| Backlight Type | DLED |
| Screen Ratio | 16:9 |
| Video/Audio Format | PAL/NTSC/SECAM |
| Compatible Video Format | Rm, rmvb, mpeg1/2/4, avi, mp4 |
| Brightness | 450cd/㎡ |
| Contrast Ratio | 15000:1 |
| Pixel Pitch | 0.42975×0.42975mm |
| Frequency | 60Hz |
| Colors | 1.07B (10bit) |
| Refresh Rate | 60 Hz |
| Working Temperature | 0℃–40℃ |
| Working Humidity | 10%–90%RH |
| Viewing Angle | 178°(H/V) |
| Response Time | The first point ≤6ms, continuity ≤2ms |
| Audio Output Power | 20W×2 |
| Display Resolution | 32767×32767 |
| Scanning Speed | 120 frames/s |
| Output Interface | Audio output x1, Coaxial x1, HDMI OUT x1, AV IN x1, MIC IN x1, VGA IN x1, VGA AUDIO IN x1 |
| Input Interface | RJ45 x1, TF x1, TOUCH PORT x1, HDMI x3, DP x1, USB x5 (USB3.0 x3, USB2.0 x1, USB Type C x1) |
| Communication Port | RS232 x1 |
| Standby Power Consumption | 0.5W |
| Manufacturer | Ekin |

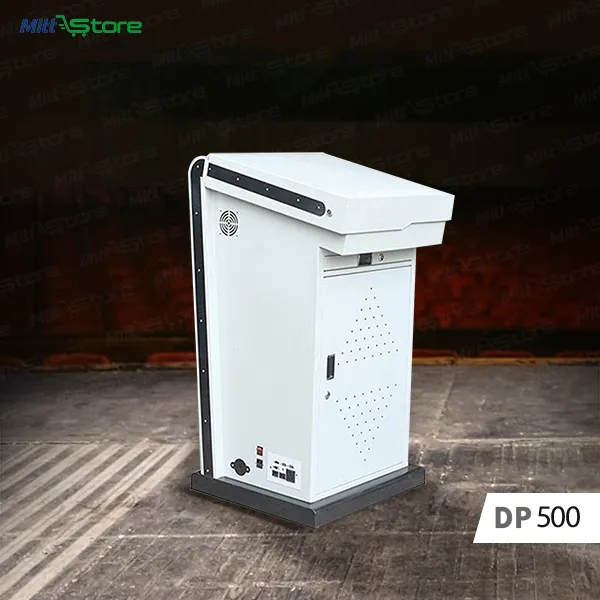

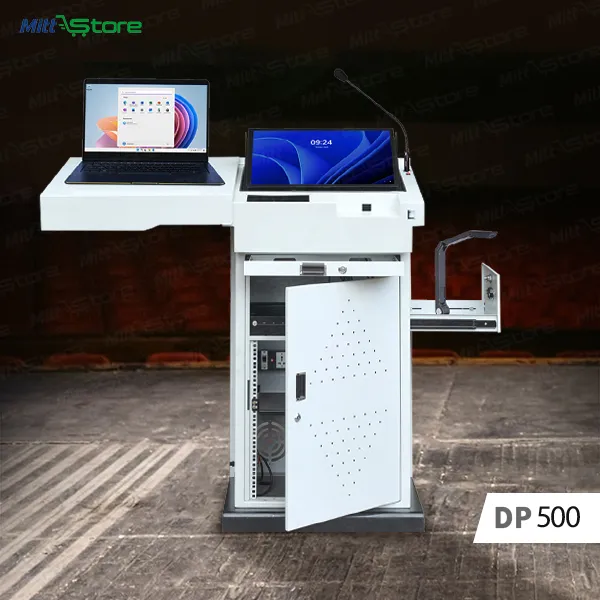

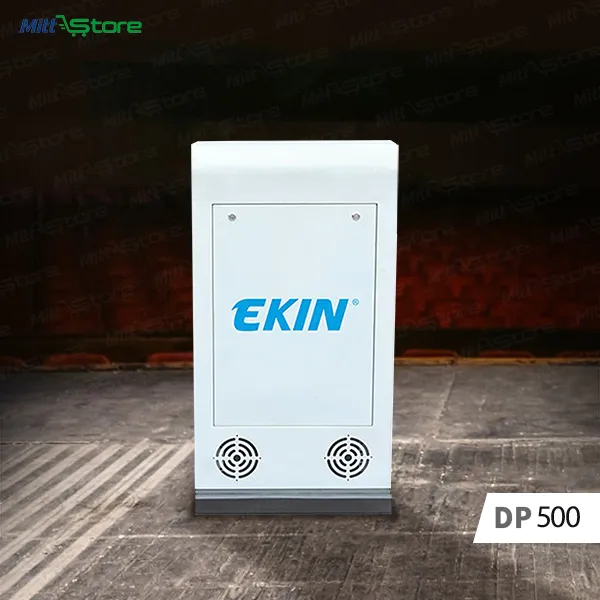

Best suited for College Class Room, Conference Room etc. Premium quality metallic CRCA sheets are used to create the Ekin Digital Podium. The touch interaction panel is attached to the top of it. Highly configured computer system is integrated. Amplification, speakers, goose-neck and wireless mics, among other audio equipment, are all included in the audio system.
| Educational Objective(s) | A digital podium enhances teaching by integrating audio-visual tools, interactive displays, and connectivity features, enabling clear communication, engaging presentations, and multimedia learning. It supports blended education, improves digital literacy, and creates an inclusive, tech-enabled classroom environment. |
| Number of Pieces | Single Piece |
| Model Number | DP500 |
| Type of Make | MS fabricated Sheet with sliding top and Lock. Hydraulic with up/down switch and power supply |
| Display | 21" touch display |
| Console Panel Port | VGA x 3, HDMI x 3, HDMI OUT x 2, VGA OUT x 2, Audio IN x 3, Audio OUT x 2, RJ45 x 1, USB x 2, RS232 x 1, AC 220V x 1 |
| In-Build Processing System | Intel i5/i7 14GB / 1TB with wireless keyboard and mouse. (OPTIONAL) |
| Power Point | 6 power points and 1 general fan |
| Audio System | Gooseneck Mic x1, Handheld Mic x1, Cordless Collar Mic x1. Amplifier: 100 watt, Speaker: 2 x 30 watt. (OPTIONAL) |
| Document Camera | 3 MP Pixel image quality. Plug & Play, Inbuilt LED light. (OPTIONAL) |
| In-Build Interactive Software | Interactive tools/features like Pen, Magic Pen, Eraser, spotlight, curtain,
shape recognition, shape editing, infinite color options for annotation, lines & arrows, screen capture tools, import/export files, unlimited pages, page navigation, save page(s), Undo/Redo, Geometric Tools like Math, protractor, compass, ruler etc. Compatible with Ekin document camera solution. Capability of taking snapshots from running video (Win platform). Option of auto-replaying pages without prior recording. |
| Additional Audio System | Audio amplifiers, speakers, and microphones are optional items provided based on customer needs |
| Warranty | 1 year |
| Manufacturer | Ekin |
Stock Adequate！Ready to ship
