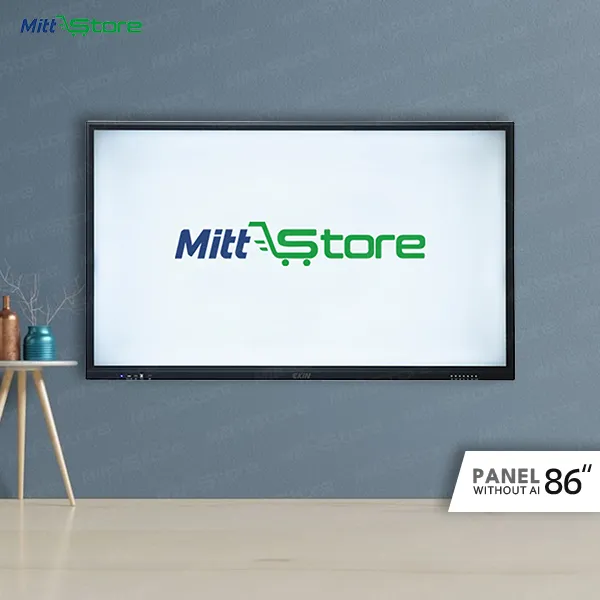

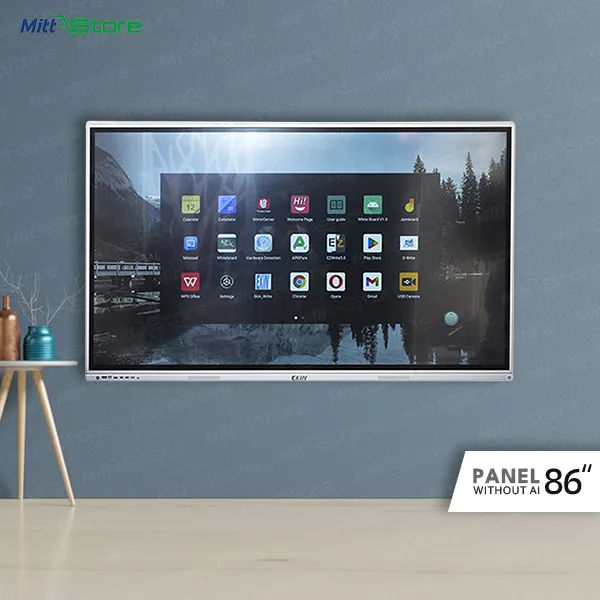

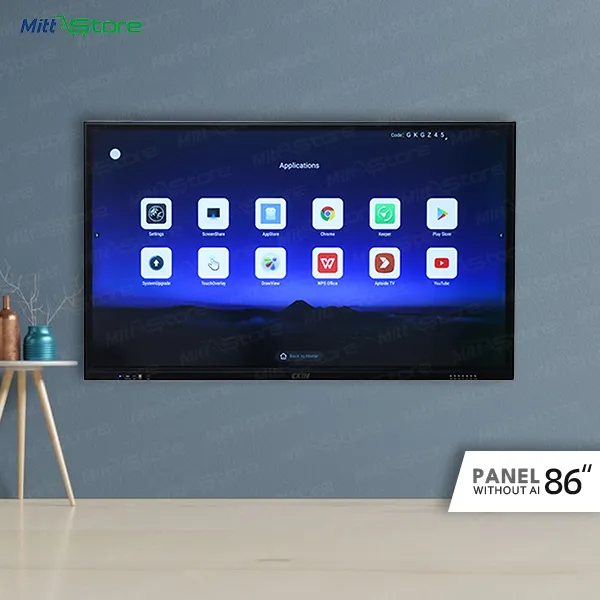

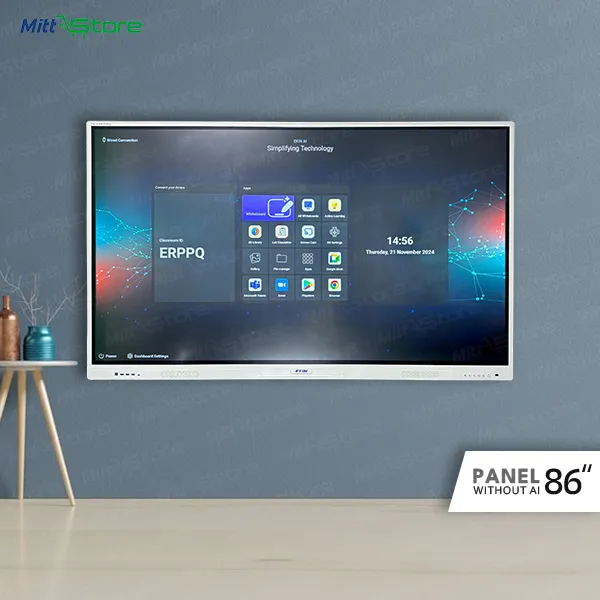

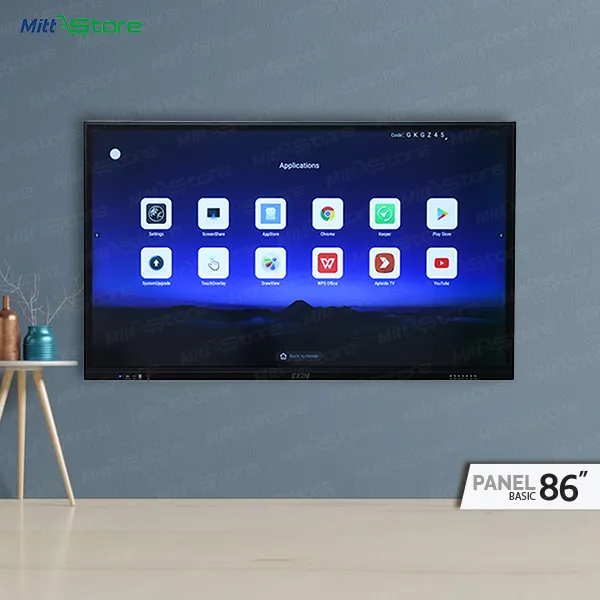

86-Inch- Large Format Interactive Panel – Multi-Touch, Eye-Care Display for Education & Business Use
₹200130.00
₹500000.00
Save ₹299870.00

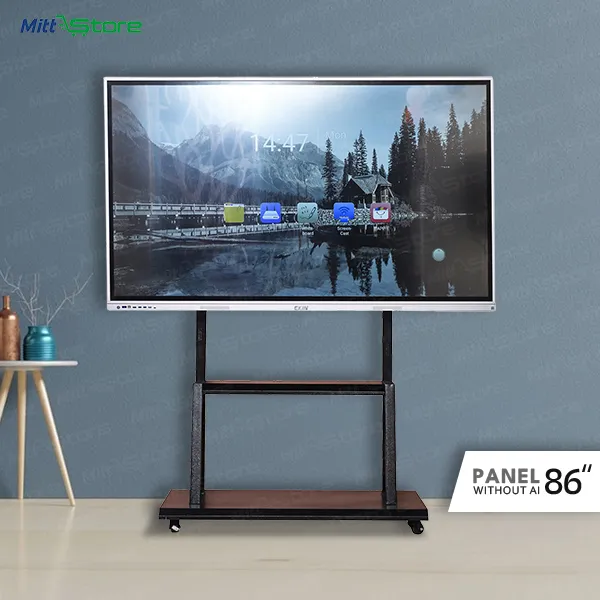

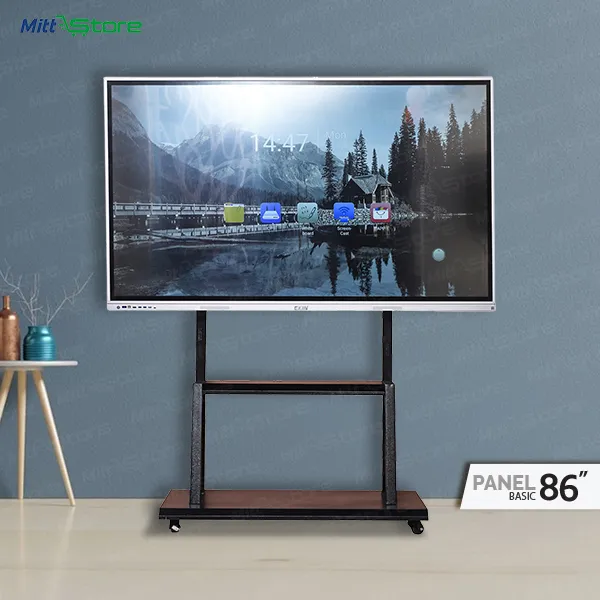

Note: The wheeled base is not included with the digital panel. To buy both, contact our customer care team
An Interactive Flat Panel (IFP) is a large display screen that combines the capabilities of a traditional whiteboard with advanced touch-screen technology, allowing for interactive collaboration and digital content sharing. IFPs are widely used in education, corporate meetings, and training environments.
More Description...
- Zero bonding technology, low parallax writing and wider viewing angles.
- 4mm anti-glare tempered glass.
- 4KUltra HD display, support full channel 4K UI display
- Eye protection, lock screen, touch lock and other tools.
- Support for multi-user functionality.
- High precision IR touch makes the user write more smoothly
- Support dual pens with different colour displays, which makes teamwork easier.
- One network support, Android and OPS are Gigabit networks. Support for network sharing
- Integrated with Al solutions according with new NEP guidelines.
| Specification | DTF 86G without AI |
| Number of Pieces | Single Piece |
| Overall Size | 1964*1174.4*94.7mm |
| Packing Size | 2085*1345*230mm |
| Display Area | 1895.2*1065.6mm |
| Physical Resolution | (4K) 3840*2160 |
| Net/Gross Weight | 74/93kgs |
| Power Consumption | 380W |
| Voltage | 100-240V~ 50/60Hz |
| Wall Amount Thickness | M8*25mm |
| Chipset | V100 |
| CPU | Octa-core |
| GPU | Mali-G52 MP2 (2EE) |
| RAM | 8GB |
| ROM | 128GB |
| Android Version | Android 14.0 |
| Touch Point | 20/40 Point Touch |
| Writing Protection | Physically Toughened Mohs Class 7 Explosion-Proof Glass |
| Touch Surface Material | Zero Bonding 4.0mm, Anti-Glare full toughened glass |
| Operational Environment Life Time | >60,000 hours |
| Backlight Type | DLED |
| Screen Ratio | 16:9 |
| Video/Audio Format | PAL/NTSC/SECAM |
| Compatible Video Format | Rm, rmvb, mpeg1/2/4, avi, mp4 |
| Brightness | 450cd/㎡ |
| Contrast Ratio | 15000:1 |
| Pixel Pitch | 0.42975×0.42975mm |
| Frequency | 60Hz |
| Colors | 1.07B (10bit) |
| Refresh Rate | 60 Hz |
| Working Temperature | 0℃–40℃ |
| Working Humidity | 10%–90%RH |
| Viewing Angle | 178°(H/V) |
| Response Time | The first point ≤6ms, continuity ≤2ms |
| Audio Output Power | 20W×2 |
| Display Resolution | 32767×32767 |
| Scanning Speed | 120 frames/s |
| Output Interface | Audio output x1, Coaxial x1, HDMI OUT x1, AV IN x1, MIC IN x1, VGA IN x1, VGA AUDIO IN x1 |
| Input Interface | RJ45 x1, TF x1, TOUCH PORT x1, HDMI x3, DP x1, USB x5 (USB3.0 x3, USB2.0 x1, USB Type C x1) |
| Communication Port | RS232 x1 |
| Standby Power Consumption | 0.5W |
- Use a soft, dry microfiber cloth to clean the screen.
- Never spray liquids directly onto the screen.
- Use a surge protector to prevent voltage-related damage.
- Place the panel in a well-ventilated, dry, and dust-free area.
- Install firmware/software updates regularly.
- Avoid applying excessive pressure to the screen.
Stock Adequate！Ready to ship
