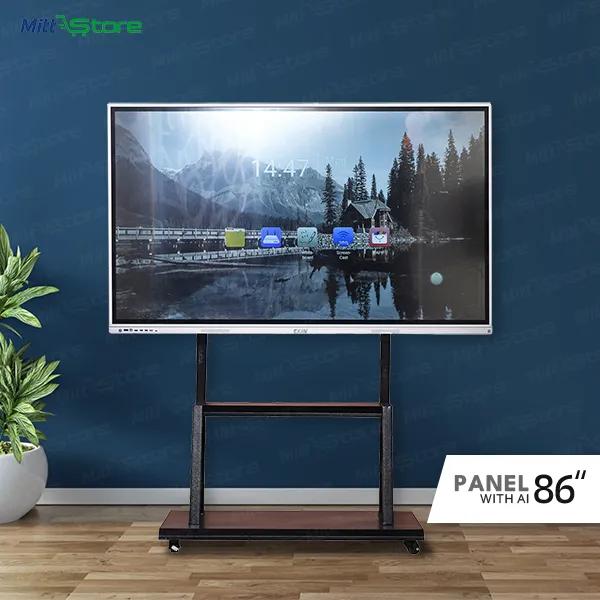

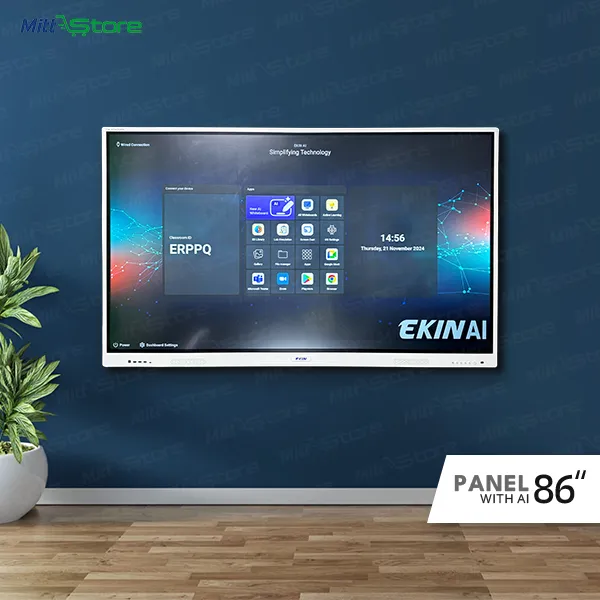

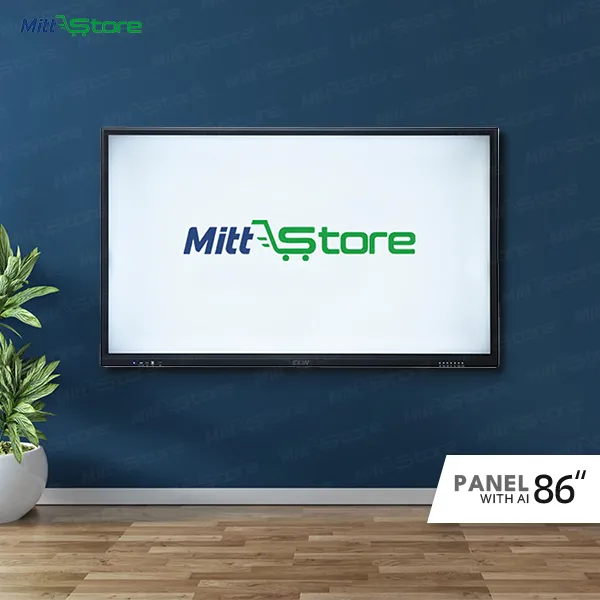

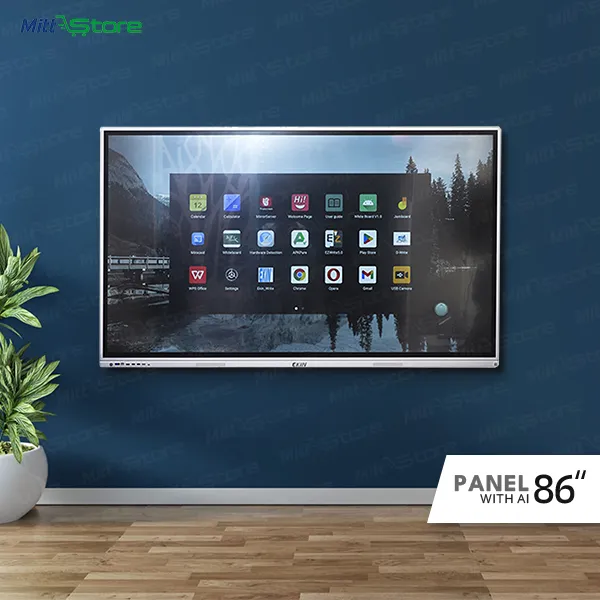

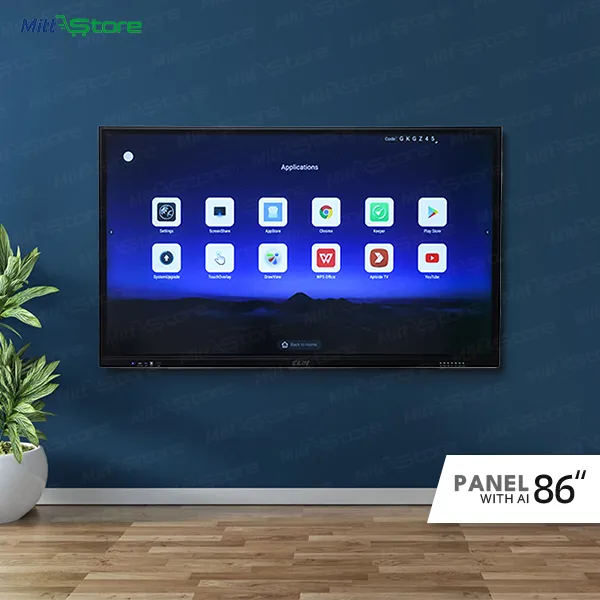

86-Inch AI-Enhanced Interactive Panel – 4K Touchscreen with Smart Teaching & Meeting Tools

₹220299.00 ~~₹600000.00~~

Save ₹379701.00

Note: The wheeled base is not included with the digital panel. To buy both, contact our customer care team

An Interactive Flat Panel (IFP) is a large display screen that combines the capabilities of a traditional whiteboard with advanced touch-screen technology, allowing for interactive collaboration and digital content sharing. IFPs are widely used in education, corporate meetings, and training environments.

More Description...

Zero bonding technology, low parallax writing and wider viewing angles.
4mm anti-glare tempered glass.
4KUltra HD display, support full channel 4K UI display
Eye protection, lock screen, touch lock and other tools.
Support for multi-user functionality.
High precision IR touch makes the user write more smoothly
Support dual pens with different colour displays, which makes teamwork easier.
One network support, Android and OPS are Gigabit networks. Support for network sharing
Integrated with Al solutions according with new NEP guidelines.

Specification	DTF 86G with AI
Number of Pieces	Single Piece
Overall Size	19641174.494.7mm
Packing Size	20851345230mm
Display Area	1895.2*1065.6mm
Physical Resolution	(4K) 3840*2160
Net/Gross Weight	74/93kgs
Power Consumption	380W
Voltage	100-240V~ 50/60Hz
Wall Amount Thickness	M8*25mm
Chipset	V100
CPU	Octa-core
GPU	Mali-G52 MP2 (2EE)
RAM	8GB
ROM	128GB
Android Version	Android 14.0
Touch Point	20/40 Point Touch
Writing Protection	Physically Toughened Mohs Class 7 Explosion-Proof Glass
Touch Surface Material	Zero Bonding 4.0mm, Anti-Glare full toughened glass
Operational Environment Life Time	>60,000 hours
Backlight Type	DLED
Screen Ratio	16:9
Video/Audio Format	PAL/NTSC/SECAM
Compatible Video Format	Rm, rmvb, mpeg1/2/4, avi, mp4
Brightness	450cd/㎡
Contrast Ratio	15000:1
Pixel Pitch	0.42975×0.42975mm
Frequency	60Hz
Colors	1.07B (10bit)
Refresh Rate	60 Hz
Working Temperature	0℃–40℃
Working Humidity	10%–90%RH
Viewing Angle	178°(H/V)
Response Time	The first point ≤6ms, continuity ≤2ms
Audio Output Power	20W×2
Display Resolution	32767×32767
Scanning Speed	120 frames/s
Output Interface	Audio output x1, Coaxial x1, HDMI OUT x1, AV IN x1, MIC IN x1, VGA IN x1, VGA AUDIO IN x1
Input Interface	RJ45 x1, TF x1, TOUCH PORT x1, HDMI x3, DP x1, USB x5 (USB3.0 x3, USB2.0 x1, USB Type C x1)
Communication Port	RS232 x1
Standby Power Consumption	0.5W
